Westco Sanitary™ 13MHHM Single Pin Heavy Duty Clamps
- The 13MHHM Series Single-Pin Heavy-Duty Clamps are an industry standard for securing Tri-Clamp connections in high-demand environments
- Made from high-grade 304 stainless steel, these clamps provide the corrosion resistance required for food and beverage processing, pharmaceutical manufacturing, and modern data center liquid cooling systems
- The single-pin hinge design allows for quick, one-handed assembly and disassembly to minimize maintenance downtime while maintaining a high-pressure seal
- These are one of our most popular sanitary clamps for economy, ease of use, and reliable performance under thermal stress
- Fastener: Equipped with a ergonomic wing nut with a cross-hole for additional tightening leverage
- Torque: Designed to achieve a secure seal when tightened to a max torque of 25 in-lb
- Temperature Range: Maintains structural integrity in high-temperature applications up to 250°F
- Applications: Ideal for sanitary piping, filtration units, and cooling loops in data centers

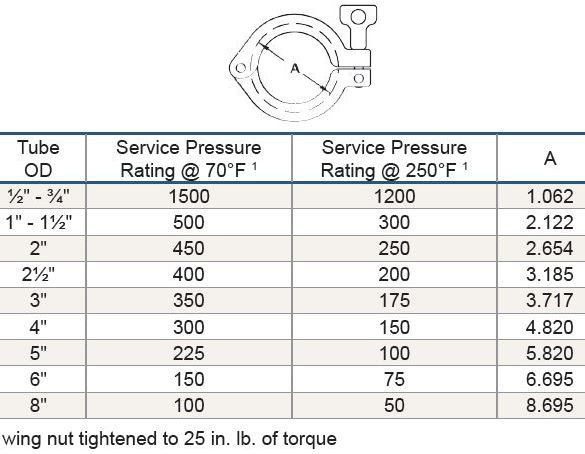

| Part Number | Tube O.D. | PSI at 70°F (21°C) | PSI at 250°F (121°C) | A (in) | Dixon # |
|---|---|---|---|---|---|
| SA13MHHM100-150 | 1" – 1-1/2" | 500 | 300 | 2.12 | 13MHHM100-150 |
| SA13MHHM200 | 2" | 450 | 250 | 2.65 | 13MHHM200 |
| SA13MHHM250 | 2-1/2" | 400 | 200 | 3.19 | 13MHHM250 |
| SA13MHHM300 | 3" | 350 | 175 | 3.72 | 13MHHM300 |
| SA13MHHM400 | 4" | 300 | 150 | 4.82 | 13MHHM400 |
Don't see the item you need? Fill out a contact us form with your request.
