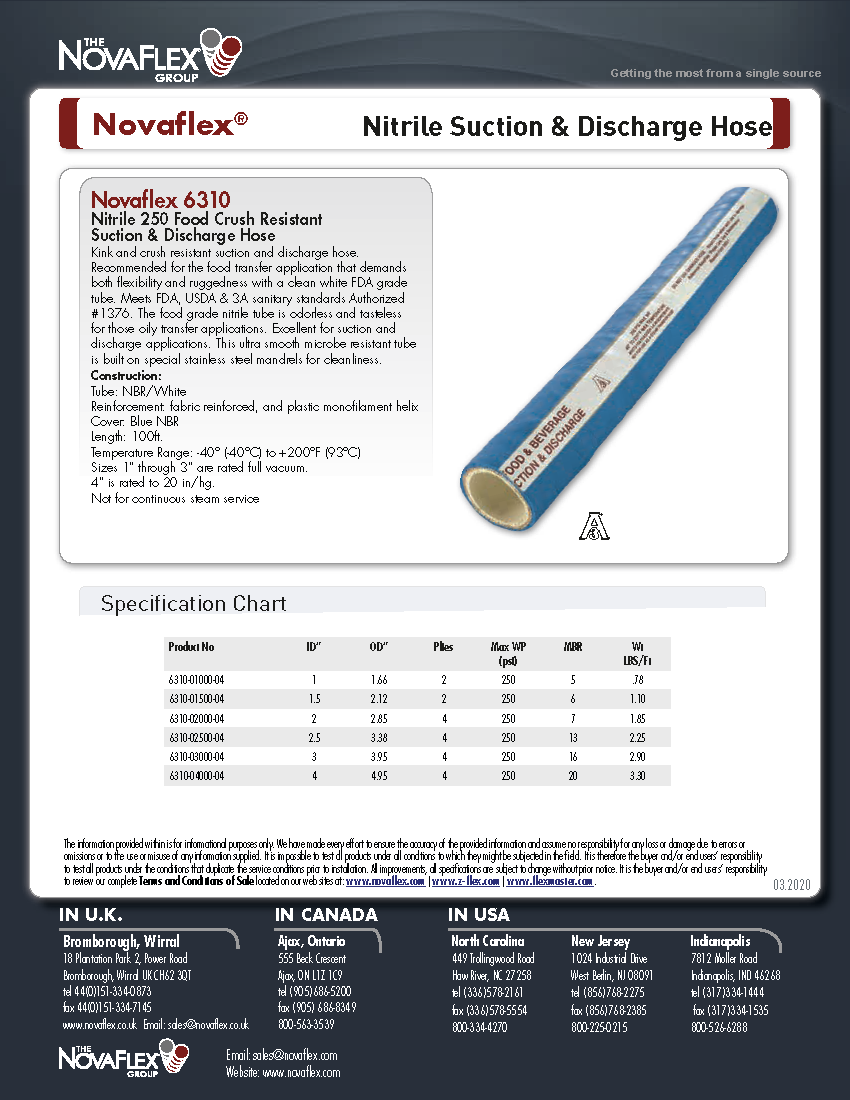

Kink and crush resistant suction and discharge hose. Recommended for the food transfer application that demands both flexibility and ruggedness with a clean white FDA grade tube. Meets FDA, USDA & 3A sanitary standards Authorized #1376. The food grade nitrile tube is odorless and tasteless for those oily transfer applications. Excellent for suction and discharge applications. This ultra smooth microbe resistant tube is built on special stainless steel mandrels for cleanliness.
Tube: NBR/White
Reinforcement: fabric reinforced, and plastic monofilament helix
Cover: Blue NBR
Roll Length: 100ft.
Temperature Range: -40° (-40°C) to +200°F (93°C)
Sizes 1” through 3” are rated full vacuum. 4” is rated to 20 in/hg.
Not for continuous steam service
|
Part No. |
I.D. |
O.D. |
Plies |
Working Pressure |
Min. Bend Radius |
Roll Length |
Weight (Lbs/ft) |
|
6310WT-01000-04 |
1" |
1.66" |
2 |
250 PSI |
5" |
100 ft |
0.78 |
|
6310WT-01500-04 |
1.5" |
2.12" |
2 |
250 PSI |
6" |
100 ft |
1.10 |
|
6310WT-02000-04 |
2" |
2.85" |
4 |
250 PSI |
7" |
100 ft |
1.85 |
|
6310WT-02500-04 |
2.5" |
3.38" |
4 |
250 PSI |
13" |
100 ft |
2.25 |
|
6310WT-03000-04 |
3" |
3.95" |
4 |
250 PSI |
16" |
100 ft |
2.90 |
