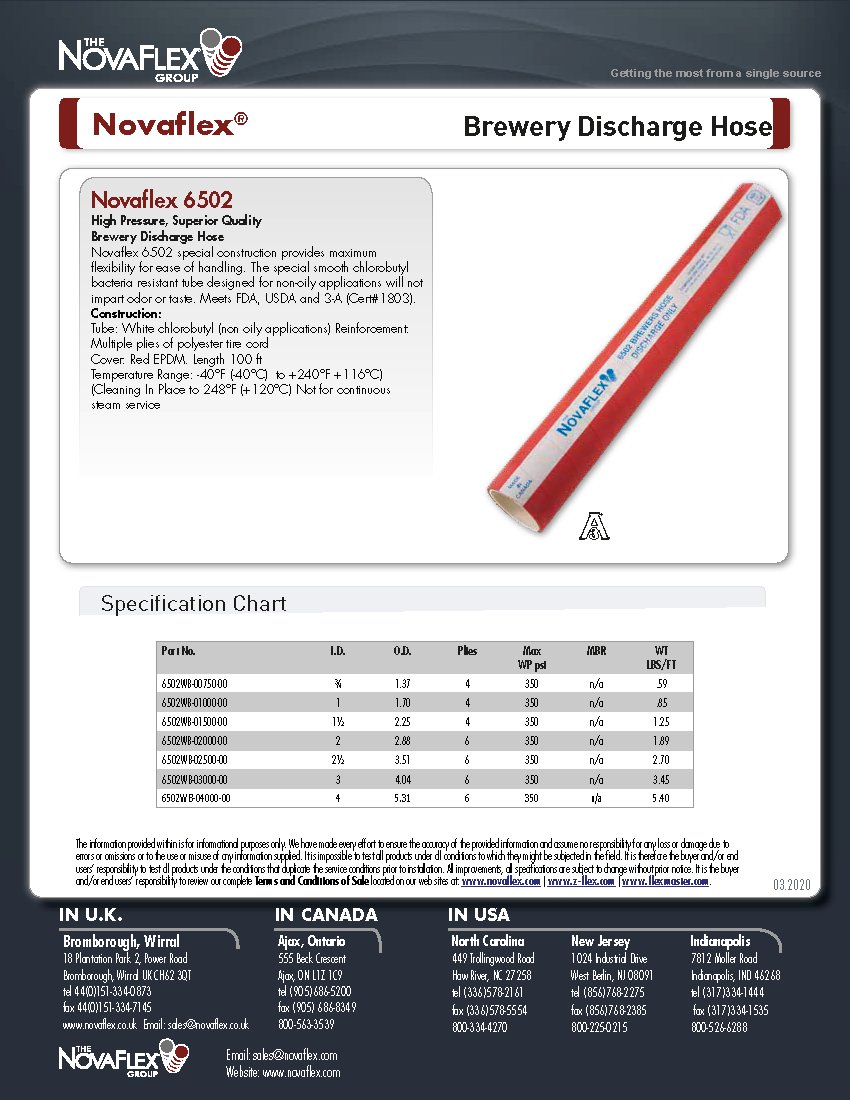

2" Sanitary - NovaFlex 6502 Brewery Discharge Hose
Quantity = Feet - Example: QTY 50 = 50ft
- Novaflex 6502 special construction provides maximum flexibility for ease of handling.
- The special smooth chlorobutyl bacteria resistant tube designed for non-oily applications will not impart odor or taste.
- Meets FDA, USDA and 3-A (Cert#1803).
Specifications:
- Tube: White Chlorobutyl (non oily applications) Reinforcement: Multiple plies of polyester tire cord.
- Cover: Red EPDM.
- Temperature Range: -40°F (-40°C) to +240°F +116°C) (Cleaning In Place to 248°F (+120°C)
- Not for continuous steam service
| Part No. | I.D | O.D. | Plies | Max WP PSI | MBR | WT LBS/FT |
| 6502WB-00750-00 | 3/4" | 1.37 | 4 | 350 | N/A | 0.59 |
| 6502WB-01000-00 | 1 | 1.7 | 4 | 350 | N/A | 0.85 |
| 6502WB-01500-00 | 1 1/2" | 2.25 | 4 | 350 | N/A | 1.25 |
| 6502WB-02000-00 | 2 | 2.88 | 6 | 350 | N/A | 1.89 |
| 6502WB-02500-00 | 2 1/2" | 3.51 | 6 | 350 | N/A | 2.7 |
| 6502WB-03000-00 | 3 | 4.04 | 6 | 350 | N/A | 3.45 |
| 6502WB-04000-00 | 4 | 5.31 | 6 | 350 | N/A | 5.4 |
Novaflex part numbers for bulk hose. Additional hose information is available at http://www.novaflex.com
Additional Westco Sanitary Fittings information is available at http://westcofitting.com/
