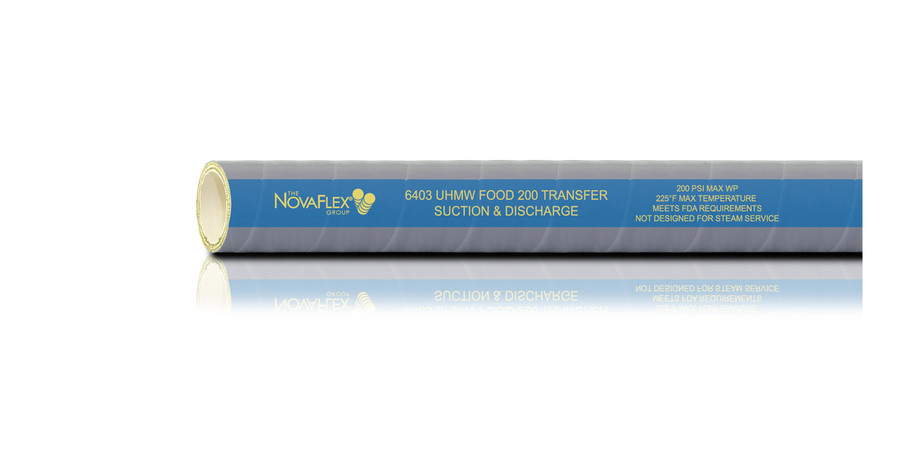

2" Sanitary - NovaFlex 6403 UHMW Food Suction & Discharge Hose-Distillery Hose
Quantity = Feet - Example: QTY 50 = 50ft
- Equal to Goodyear Vintner sanitary hoses
- Special kink and crush resistant suction & discharge hose, designed for those more demanding applications.
- meets 3-A (cert# 1376), FDA & USDA standards.
- Meets or exceeds the requirement of the Canadian Food Inspection Agency (File: N267)
- Designed to meet the temperatures and chemical resistance associated with cleaning in place systems.
This ultra smooth microbe resistant tube is built for non-oily applications, on special stainless steel mandrels for cleanliness.
Specifications:
- Tube: FDA UHMW - odor and tasteless (non oily transfer applications)
- Reinforcement: Multiple plies of polyester tire cord with helix wire
- Cover: Gray EPDM
- Temperature Range: -40°F to +225°F (Cleaning In Place to 248°F)
- Not for steam service.
| Part No. | I.D | O.D. | Max WP PSI | Bend Radius | Vacuum HG | WT LBS/FT |
| 6403CU-00750-00 | 3/4" | 1.28 | 200 | 3.5 | 29” | 0.58 |
| 6403CU-01000-00 | 1 | 1.55 | 200 | 3.5 | 29” | 0.63 |
| 6403CU-01500-00 | 1 1/2" | 2.06 | 200 | 5 | 29” | 1.06 |
| 6403CU-02000-00 | 2 | 2.56 | 200 | 8 | 29” | 1.33 |
| 6403CU-03000-00 | 3 | 3.75 | 200 | 12 | 29” | 2.12 |
| 6403CU-04000-00 | 4 | 4.76 | 200 | 16 | 29” | 2.83 |
Novaflex part numbers for bulk hose. Additional hose information is available at http://www.novaflex.com
Additional Westco Sanitary Fittings information is available at http://westcofitting.com/
