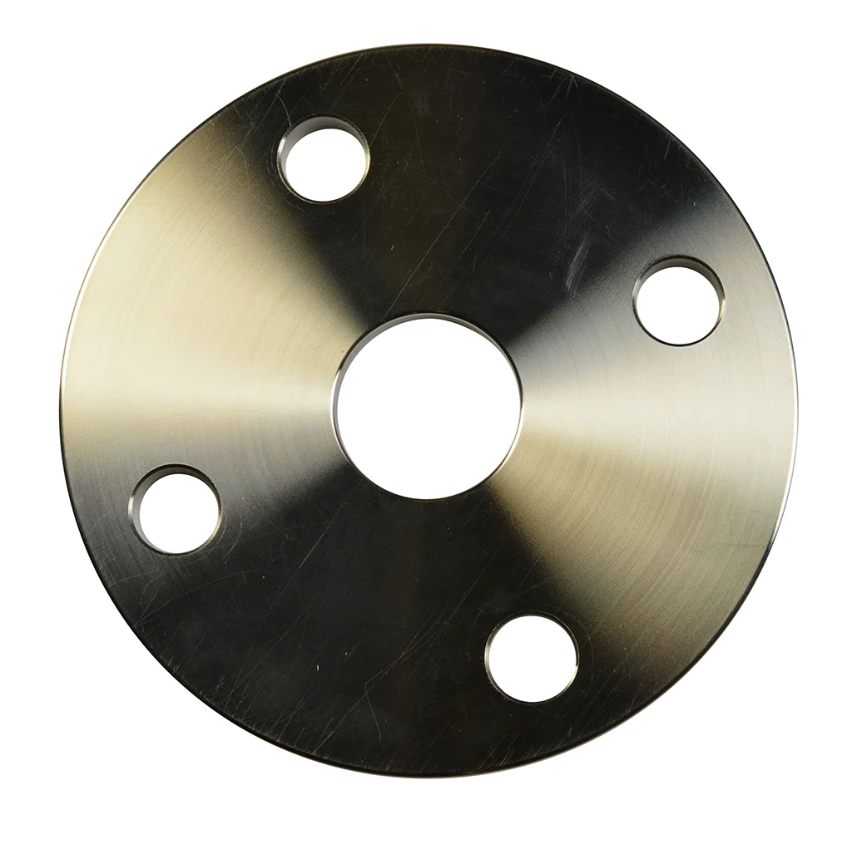

Westco Sanitary™ 38SL Unpolished Slip-On 150# Flange
- Made from 304 Stainless Steel
- Unpolished finish
- The 38SL Slip-On Tube Flange is a sanitary fitting that pairs with the 14VB Type A Stub End to create an adjustable flange connection.
- The stub end is welded to the tubing, and the slip-on tube flange is positioned onto the stub end allowing it to be rotated to the correct position for flexible installation.
- This flange has a standard size ASME 150# bolt pattern
- Specifications: ASTM A182
| Part Number | Tube O.D. | A (in) | B (in) | C (in) | Bolt Holes (in) | Dixon 304SS | Dixon 316L |
|---|---|---|---|---|---|---|---|
| SAB38SL-G100 | 1" | 3.13 | 1.06 | 0.38 | 4 /.63 | B38SL-G100 | B38SL-R100 |
| SAB38SL-G200 | 2" | 4.75 | 2.06 | 0.44 | 4 /.75 | B38SL-G200 | B38SL-R200 |
| SAB38SL-G300 | 3" | 6.00 | 3.06 | 0.50 | 4 /.75 | B38SL-G300 | B38SL-R300 |
| SAB38SL-G400 | 4" | 7.50 | 4.06 | 0.56 | 8 /.75 | B38SL-G400 | B38SL-R400 |
