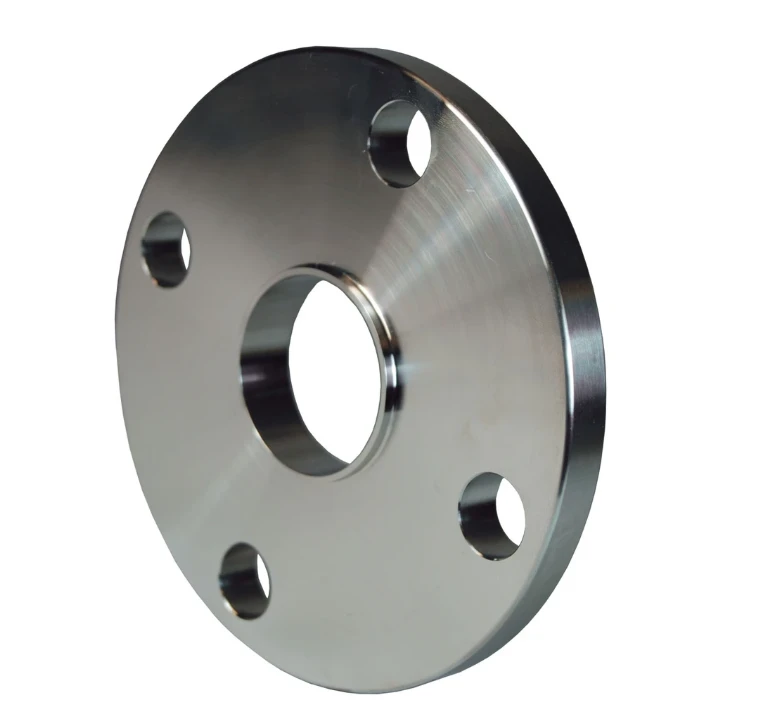

Westco Sanitary™ 38W Weld Neck Flanges
- Made from 304 Stainless Steel (unpolished)
- For connecting sanitary OD tube to ASME 150# flanges
- Designed to be welded into permanent process lines to connect to equipment that has a flange connection
- Flange ends are often used on industrial pumps and valves that can be found in the food, beverage, and pharmaceutical industries
| Part # | Tube O.D. | A (in) | B (in) | C (in) | Wall (in) | Bolt Holes (in) | Dixon |
|---|---|---|---|---|---|---|---|
| SAB38W-R100 | 1" | 3.13 | 0.87 | 0.50 | .065 | 4 /.63 | B38W-R100 |
| SAB38W-R200 | 2" | 4.75 | 1.87 | 0.63 | .065 | 4 /.75 | B38W-R200 |
Don't see the item you need? Fill out a contact us form with your request.
