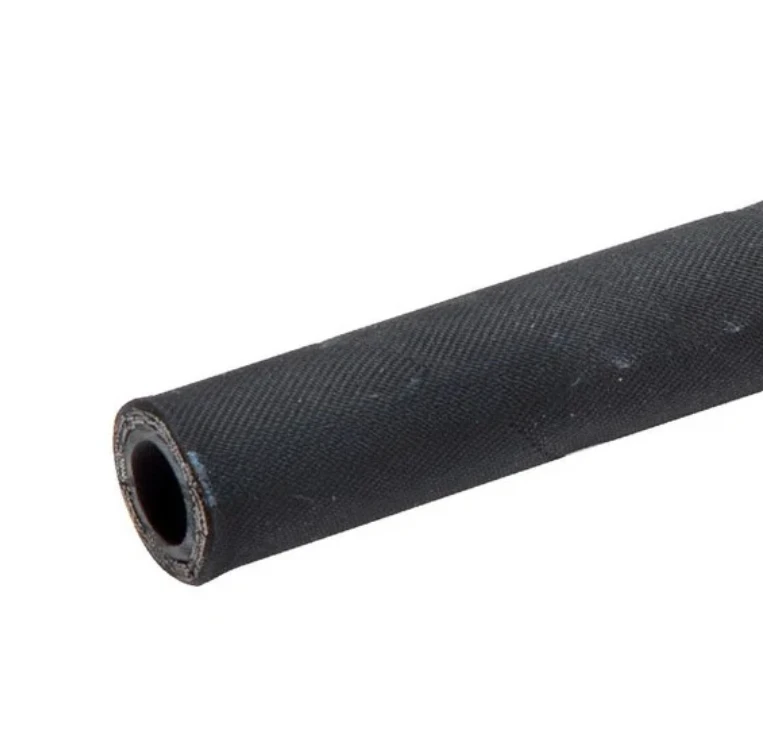

Application: Suitable for use as an oil return hose according to SAE 100/R4.
-
Standard/Approval: SAE J517 Type: SAE 100/R4: 2017
-
Temperature Range: -40°C to +100°C
-
Safety Factor: 4:1
-
Tube: NBR, black, antistatic, smooth
-
Reinforcement: Textile wrapped, zinc-plated double steel wire helix (DN > 50.0, zinc-plated steel wire helix)
-
Cover: SBR/EPDM, black, resistant to ozone and weather, abrasion resistant, limited resistance to oil, cloth impression
-
Marking: Continuous embossed tape: "SEMPERIT (S) TMR4 Öl/Oil SD SAE 100/R4-ID MAX. W.P. MPa bar XQ/YY"
-
Notice: Hose is only suitable for oils according to SAE 100/R4. Be aware of the different working pressures.
| Part Number | Internal Ø (mm) | Internal Ø (inch) | Wall Width (mm) | External Ø (mm) | Working Pressure Max. (bar) | Number of Inserts | Bending Radius Min. (mm) | Weight Approx. (kg/m) | Coil Length Max. (m) |
|---|---|---|---|---|---|---|---|---|---|
| 48815 1650 | 16.0 | 5/8 | 5.0 | 26.0 | 21 | 2 | 60 | 0.50 | 40 |
| 48815 1950 | 19.0 | 3/4 | 5.0 | 29.0 | 21 | 2 | 70 | 0.60 | 40 |
| 48815 2550 | 25.4 | 1 | 5.0 | 35.4 | 17 | 2 | 90 | 0.70 | 40 |
| 48815 3250 | 31.8 | 1-1/4 | 5.0 | 41.8 | 14 | 2 | 125 | 0.90 | 40 |
| 48815 3855 | 38.1 | 1-1/2 | 5.5 | 49.0 | 10.5 | 2 | 150 | 1.10 | 40 |
| 48815 5155 | 51.0 | 2 | 5.5 | 62.0 | 7 | 2 | 200 | 1.35 | 40 |
| 48815 6365 | 63.5 | 2-1/2 | 6.5 | 76.5 | 5 | 2 | 250 | 1.90 | 40 |
| 48815 7665 | 76.2 | 3 | 6.5 | 89.2 | 5 | 2 | 300 | 2.50 | 40 |
| 64815 1070 | 102.0 | 4 | 7.0 | 116.0 | 5 | 2 | 410 | 3.80 | 40 |
