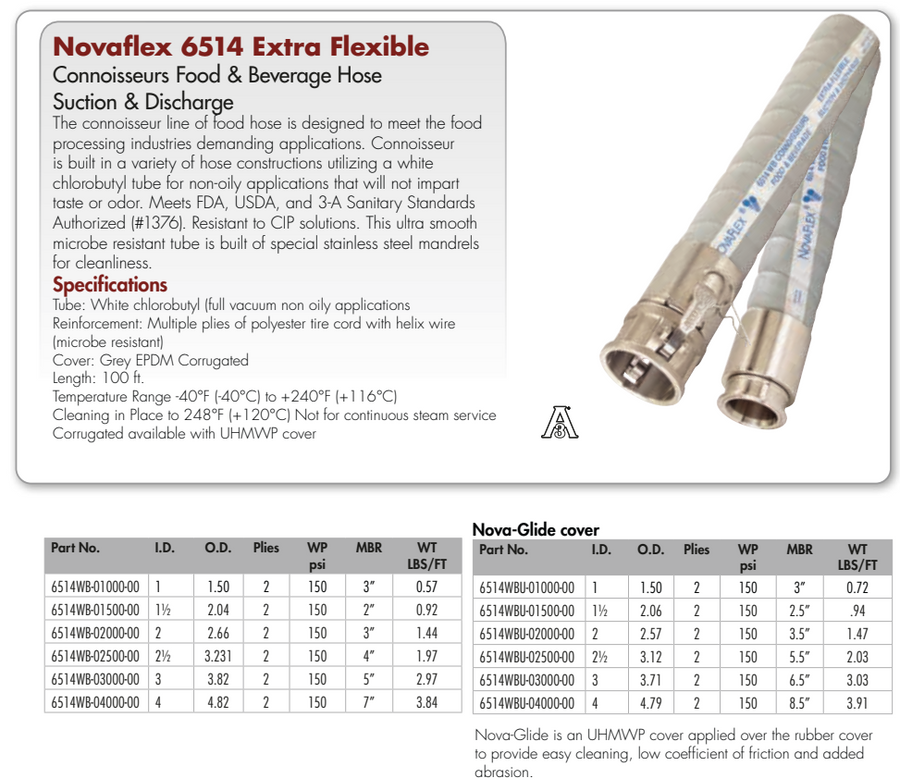

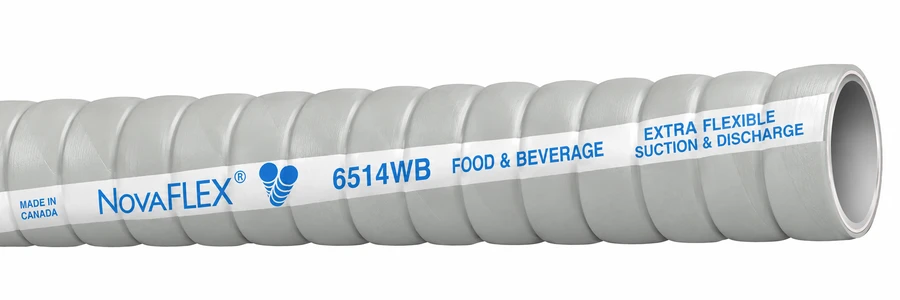

1 1/2" Sanitary - NovaFlex 6514 WD Extra Flexible Connoisseurs Food & Beverage Hose (Quantity = Ft. Length)
Quantity = Feet - Example: QTY 50 = 50ft
- The connoisseur line of food hose is designed to meet the food processing industries demanding applications.
- Connoisseur is built in a variety of hose constructions utilizing a white chlorobutyl tube for non-oily applications that will not impart taste or odor.
- Meets FDA, USDA, and 3-A Sanitary Standards Authorized (#1376). Resistant to CIP solutions.
- This ultra smooth microbe resistant tube is built of special stainless steel mandrels for cleanliness.
Specifications:
- Tube: White chlorobutyl (full vacuum non oily applications
- Reinforcement: Multiple plies of polyester tire cord with helix wire (microbe resistant)
- Cover: Grey EPDM Corrugated
- Temperature Range -40°F (-40°C) to +240°F (+116°C)
- Cleaning in Place to 248°F (+120°C)
- Not for continuous steam service
| Part No. | I.D | O.D. | Plies | Max WP PSI | MBR | WT LBS/FT |
| 6514WT-01500-00 | 1 1/2" | 2.04 | 2 | 150 | 2" | 0.92 |
| 6514WT-02000-00 | 2 | 2.66 | 2 | 150 | 3" | 1.44 |
| 6514WT-02500-00 | 2 1/2" | 3.231 | 2 | 150 | 4" | 1.97 |
| 6514WT-03000-00 | 3 | 3.82 | 2 | 150 | 5" | 2.97 |
| 6514WT-04000-00 | 4 | 4.82 | 2 | 150 | 7" | 3.84 |
Novaflex part numbers for bulk hose. Additional hose information is available at http://www.novaflex.com
Additional Westco Sanitary Fittings information is available at http://westcofitting.com/
