Quantity = Feet - Example: QTY 50 = 50ft

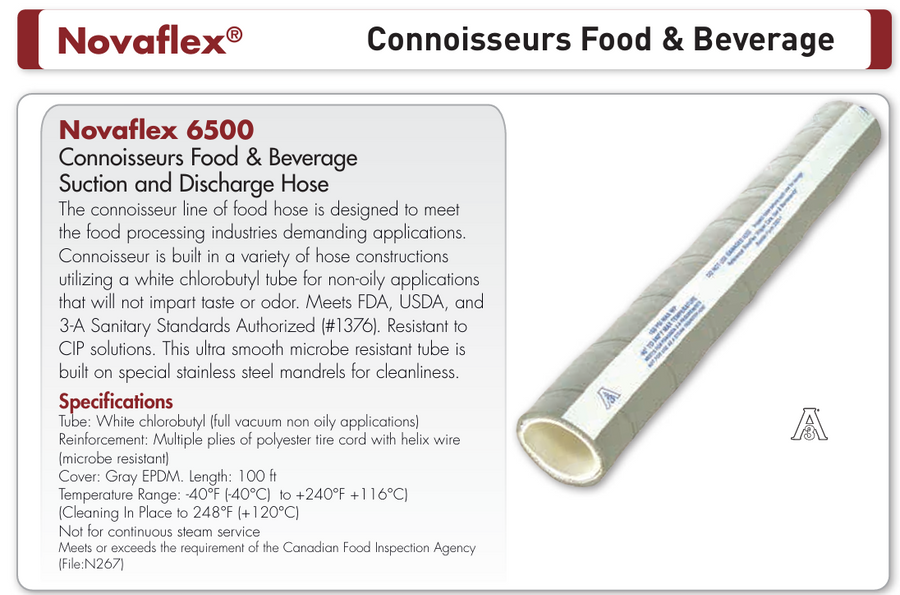

- Equal to Goodyear Vintner sanitary hoses
- Special kink and crush resistant suction & discharge hose, designed for those more demanding applications.
- meets 3-A (cert# 1376), FDA & USDA standards.
- Meets or exceeds the requirement of the Canadian Food Inspection Agency (File: N267)
- Designed to meet the temperatures and chemical resistance associated with cleaning in place systems.
This ultra smooth microbe resistant tube is built for non-oily applications, on special stainless steel mandrels for cleanliness.
Specifications:
- Tube: White Chlorobutyl (non oily applications)
- Reinforcement: Multiple plies of polyester tire cord & dual monofilament helix
- Cover: Gray EPDM abrasion resistant.
- Temperature Range: -40°F (-40°C) to +240°F (+116°C) (Cleaning In Place to 248°F (+120°C)
- Not for continuous steam service

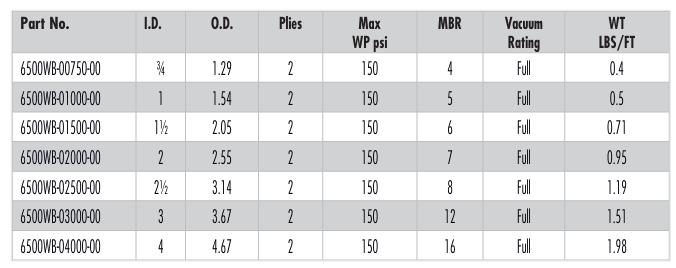

| Part No. | I.D. | O.D. | Plies | Max WP (PSI) | MBR | Vacuum Rating | WT (LBS/FT) |
|---|---|---|---|---|---|---|---|
| 6500WB-00750-00 | 3/4" | 1.29 | 2 | 150 | 4 | Full | 0.40 |
| 6500WB-01000-00 | 1" | 1.54 | 2 | 150 | 5 | Full | 0.50 |
| 6500WB-01500-00 | 1-1/2" | 2.05 | 2 | 150 | 6 | Full | 0.71 |
| 6500WB-02000-00 | 2" | 2.55 | 2 | 150 | 7 | Full | 0.95 |
| 6500WB-02500-00 | 2-1/2" | 3.14 | 2 | 150 | 8 | Full | 1.19 |
| 6500WB-03000-00 | 3" | 3.67 | 2 | 150 | 12 | Full | 1.51 |
| 6500WB-04000-00 | 4" | 4.67 | 2 | 150 | 16 | Full | 1.98 |
Don't see the item you need? Fill out a contact us form with your request.
