Westco Sanitary™ 40MP-DIN Euro Gasket Buna-N 11851

Part # 40MP-DIN

Write a Review
$1.39 - $2.79
SKU:
40MP-DIN
Adding to cart… The item has been added
  • Free domestic shipping on orders over $49
  • Secure checkout

Not sure it fits?

Our specialists can check sizes, fittings and compatibility before you order.

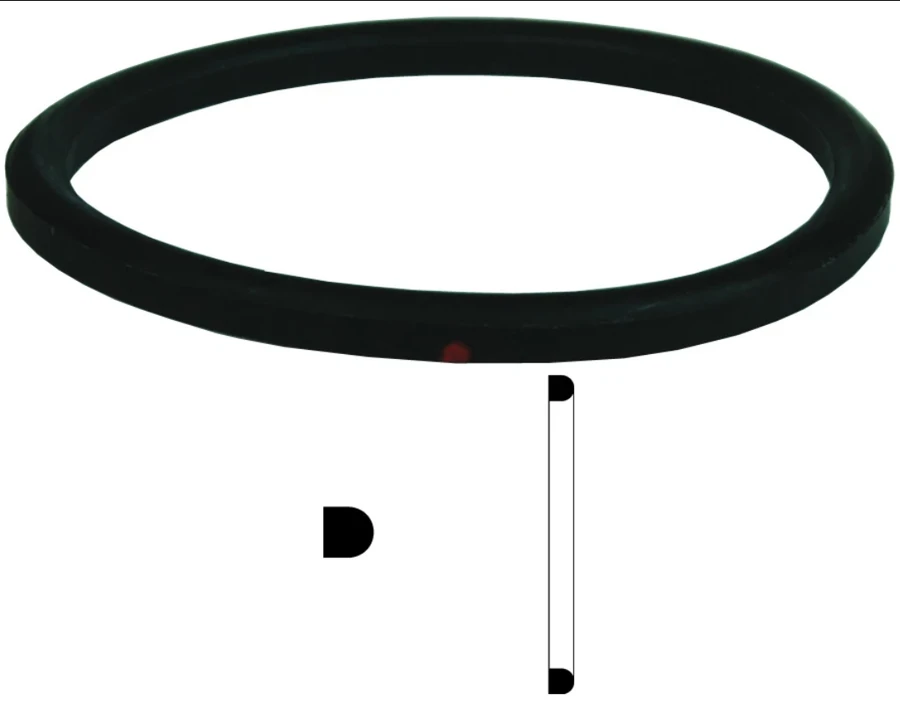

Westco Sanitary™ 40MP-DIN Euro Gasket Buna-N 11851

  • DIN Fittings (Deutsches Institute for Normung) are used extensively in Germany and throughout Europe in many Hygienic Industries and Brewing and Distilling

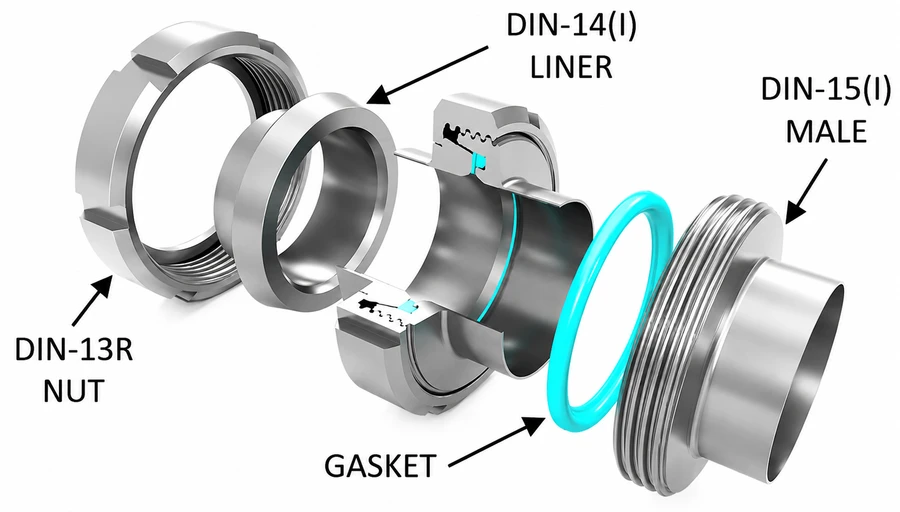

  • DIN gaskets are used to make a secure, sanitary, leak-proof seal between stainless steel DIN Liners and DIN Ferrules

  • The underside of the gasket is flat and butts up against the welding liner's flat face, while the top side has a rounded edge which fits nicely into the groove of the welding male, the round nut then joins the liner and male compressing the gasket creating a tight seal

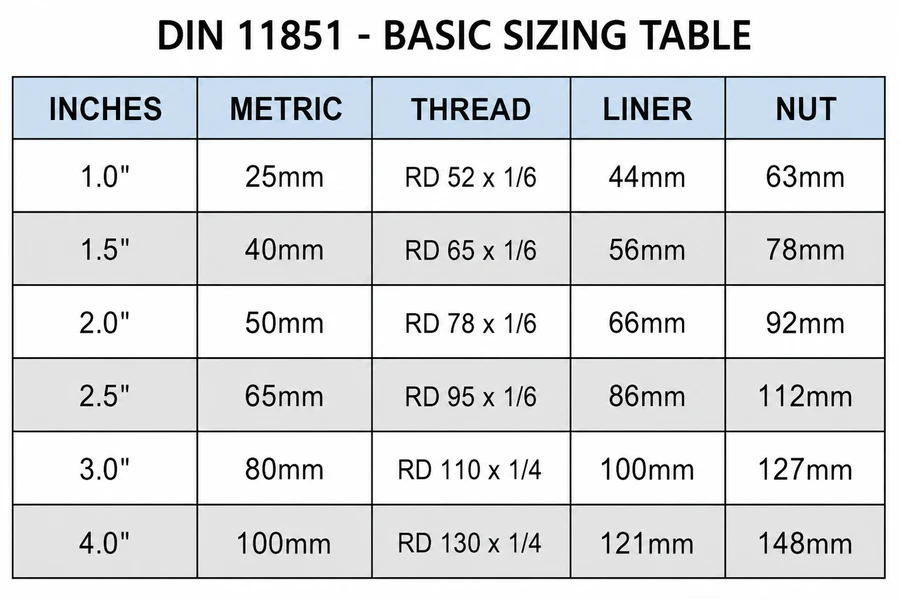

  •  The reason the DIN and Inch sizes are listed together is because we manufacture them to be compatible between these sizes. Ex: 2.0”=50mm, 2.5”=65mm, etc.
Part #Nominal SizeI.D. (mm)O.D. (mm)Dixon #
SA40MP-U150DIN 1-1/2" 41.91 52.07 40MP-U150DIN
SA40MP-U200DIN 2" 54.10 64.01 40MP-U200DIN
SA40MP-U300DIN 3" 85.09 95.00 40MP-U300DIN
