Titan Impact X 410 Airless Paint Sprayer Parts
Find Titan Impact X 410 repair parts for skid model 2430897 and high-cart model 2430869. These diagrams follow service manual 2441628G (1026).
Click a numbered marker to see matching OEM and aftermarket replacement choices. Use the zoom buttons to enlarge the drawing. Match the part number and your sprayer version before ordering.
Jump to: Main Assembly · Suction Set (Skid) · Drive Assembly · Fluid Section / Pump & Valves · High Cart Assembly · No-Spill Pump Filter Assembly
Main Assembly
For skid model 2430897 and high-cart model 2430869. Items 5, 10, 12, and 20-22 are skid parts; items 14-19 are high-cart parts. Item 10 is listed as 2426199 in the manual and uses packaged assembly 2426199A. Hardware and handle kits appear at the end of the list.
Suction Set (Skid)
For skid model 2430897. The optional solvent-resistant O-ring appears at the end of the list.
Drive Assembly
For both versions. Item 3 uses 2453422 for the skid or 2430171A for the high cart. Item 22 is the No-Spill pump filter assembly shown separately below.
Fluid Section / Pump & Valves
For both versions. Item 19 uses 704-054 for the skid or 730-511 for the high cart. Packing and valve repair kits appear at the end of the list.
High Cart Assembly
For high-cart model 2430869. The cart hardware kit includes items 2-3 and 6-9.
No-Spill Pump Filter Assembly
For both versions. The manual specifies a white 60-mesh filter for item 4.

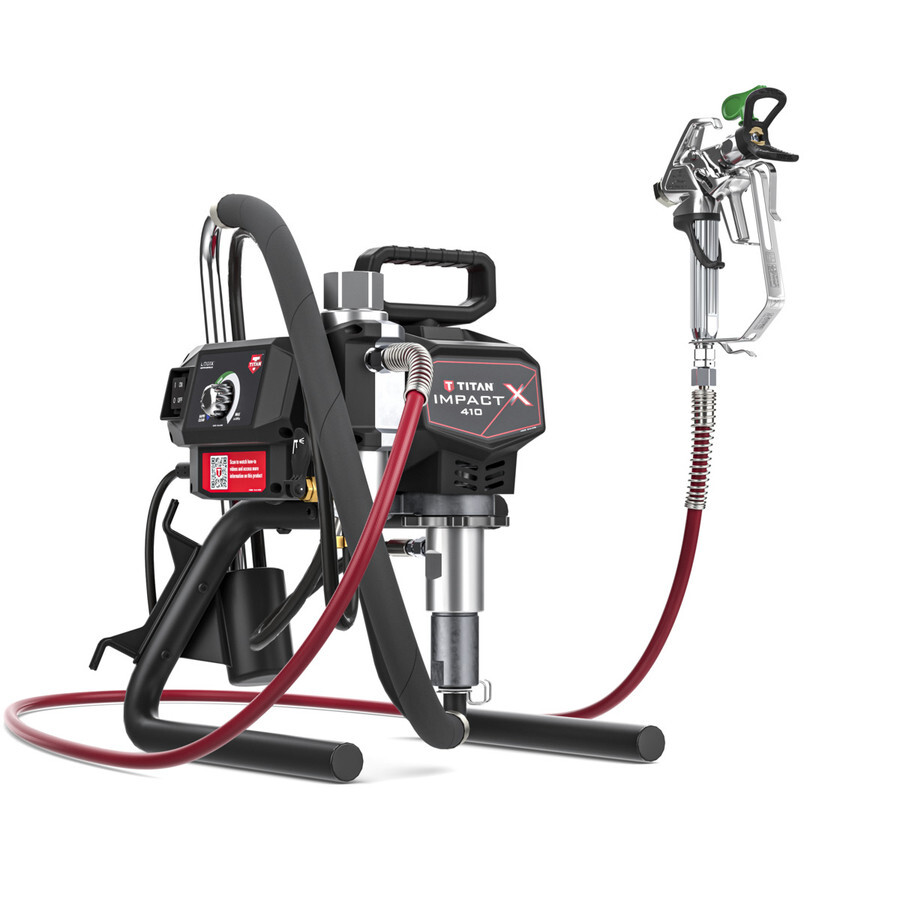

The Titan Impact X 410 is engineered for professionals who demand reliable performance in a lightweight, compact design. Built with the same rugged quality as its larger counterparts, the X 410 delivers consistent pressure, precise spray patterns, and the power to tackle a wide range of residential and light commercial jobs with confidence.
Compatible Spray Coatings: stains, lacquers, enamels, latex, and other low to medium viscosity coatings.
When replacing parts for the Titan Impact X 410, be sure to select the correct components for your specific model. You can find your sprayer’s model number in the Titan Impact X 410 manual or reach out to us directly. We’re always happy to help you find the right part the first time.
Questions & Answers
What types of coatings can the Impact X 410 spray?
The Titan Impact X 410 is built to spray a wide range of low to medium viscosity coatings, including stains, lacquers, enamels, primers, and latex paints. It’s a dependable choice for professionals working on residential, property maintenance, and light commercial projects.
How much paint can the Impact X 410 spray per week?
The Impact X 410 is rated for 50–75 gallons per week, making it ideal for contractors and serious DIYers who need a high-performance sprayer for consistent, daily use.
What makes the Impact X 410 different from other airless sprayers?
The Impact X 410 includes advanced features that set it apart from other sprayers in its class:
- DuraLife™ HE Brushless Motor – Runs cooler and delivers long-lasting, maintenance-free performance.
- Logix™ Adaptive Pressure Control – Uses tip-sensing tech to reduce pressure while maintaining optimal spray performance.
- MaxFX™ Fluid Section – Field-replaceable in minutes, no tools needed.
- Quad+™ Packings – Self-adjusting to reduce wear and extend sprayer life.
- PermaLife™ Cylinder – Never needs replacement.
- No-Spill™ Pump Filter – Flushes 3x faster with 1/3 the water.
- Heavy-duty sealed DCX motor and reversible tungsten carbide seats for long-term durability.
Is the Impact X 410 easy to clean and maintain?
Yes, the Impact X 410 is designed for quick maintenance and easy cleanup. Features like the No-Spill™ Pump Filter and MaxFX™ fluid section make it possible to flush and service the sprayer in minutes, using less water. Its field-serviceable design means you can replace critical components like the fluid section on-site without any tools.
