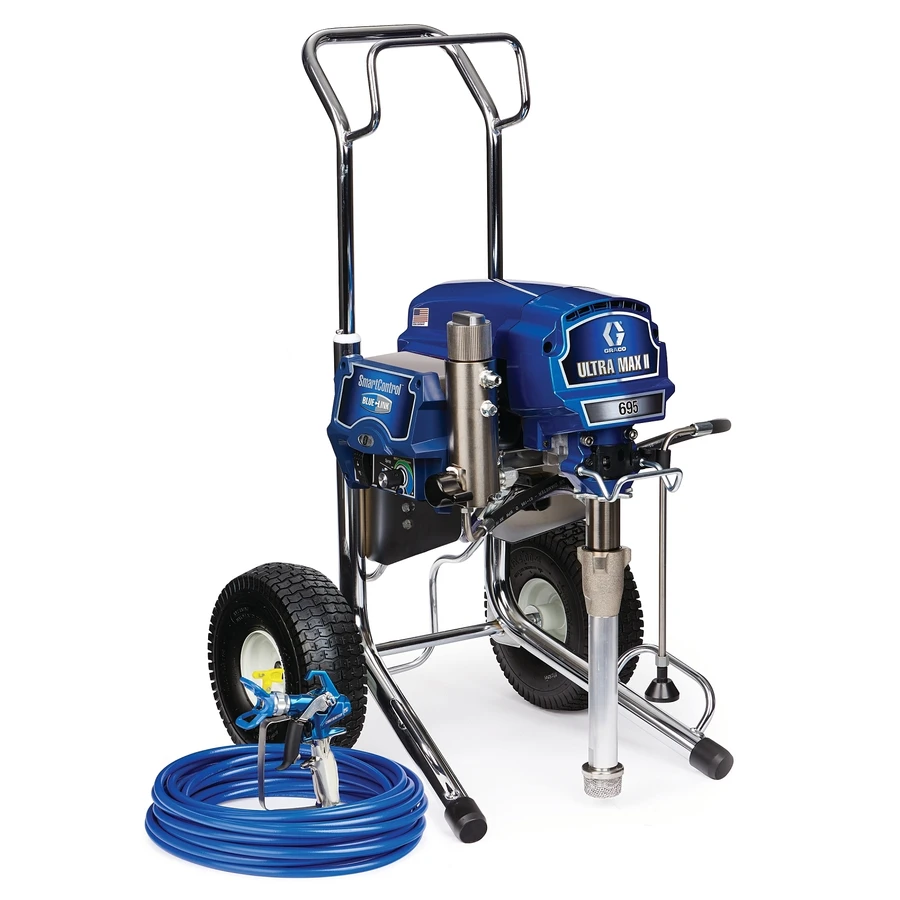

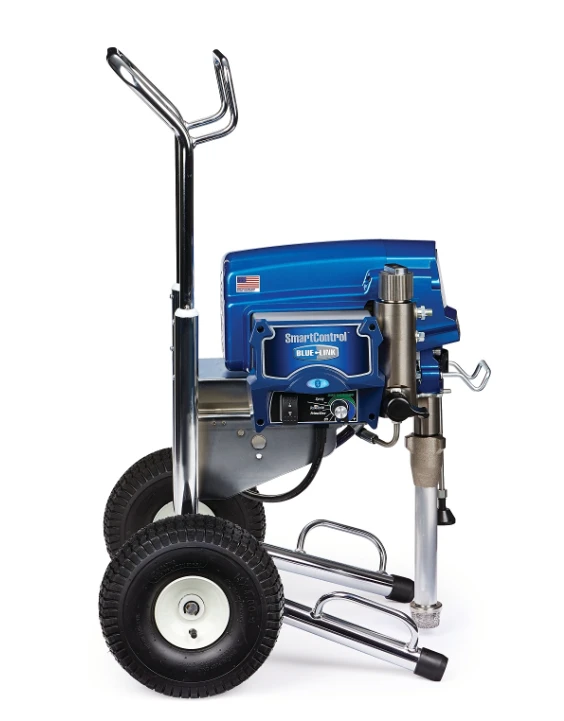

Graco 17E574 Ultra Max II 695 Standard Series Electric Airless Hi-Boy Sprayer

Description
Reviews

The Ultra Max II 695 Standard Series Hi-Boy electric airless sprayer provides dependable performance with features that include a 2.0 hp brushless DC motor, industry-proven Chromex pump with 2X life, SmartControl 4.0, BlueLink Job & Sprayer Management System, the Contractor PC gun and much more.

Everyday Reliability. Standard Series large electric airless sprayers are the industry standard for residential and commercial contractors looking for proven reliability to spray a wide variety of coatings with a variety of tip sizes on larger jobs.

Endurance Chromex Piston Pump
- Lasts 2X Longer than competing pumps
- Repack the pump in minutes with the new QuikPak Cartridge System
- Faster cleaning with the QuikAccess intake foot valve
SmartControl 4.0 with ProGuard Protection System
- Precision Pressure control at any pressure
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
BlueLink Job & Sprayer Management App
- Streamline Your Business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
MaxPower Motor
- Get more work done
- Proven performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
Advantage Drive
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Drive Train Warranty
FastFlush
- Clean the pump 2X faster using 1/2 the water
- High-velocity fluid flow delivered with 60% higher motor speed
Easy Out Filter
- Easy maintenance & less clogging
- Exclusive inside-out filtering process ensures a quality finish
- Vertical design for less mess
Heavy-Duty Prime Valve
- Maintenance-free high-pressure dumping capability
Durable Cart Design with Kickstand
- Withstands rugged environments
- Design allows for easy, one-person bucket changes
- Retractable handle doubles as hose storage
- Kickstand for easy one person bucket changes
Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge

Specification	Value
Model	Ultra Max II
Series	695
Product Series	Standard
Frame	Hi-Boy
Power	2 HP / 1.49 kW
Amperage	15 A
Frequency	50/60 Hz
Max Flow Rate	3.6 L/min
Max Pressure	3,300 PSI
Max Tip – 1 Gun	0.031"
Max Tip – 2 Guns	0.023"
Number of Guns	2
Filter	60 Mesh
Hose Inlet	1/4"
Fluid Outlet	6.35 mm
Pressure Control	SmartControl 4.0
Pump Mount	QuikChange
Pump Rod	Chromex
Recommended Usage	100–200 gal/week
Minimum Generator	5,000 W
Dimensions (L × W × H)	26" × 22.5" × 38.75"
Weight	43 kg
Sound Pressure	82 dB(A)
Volume Per Cycle	226 cycles/gal
Includes	Contractor PC Gun, RAC X LP 517 Tip, RAC X Guard, 1/4" × 50' BlueMax II Hose
