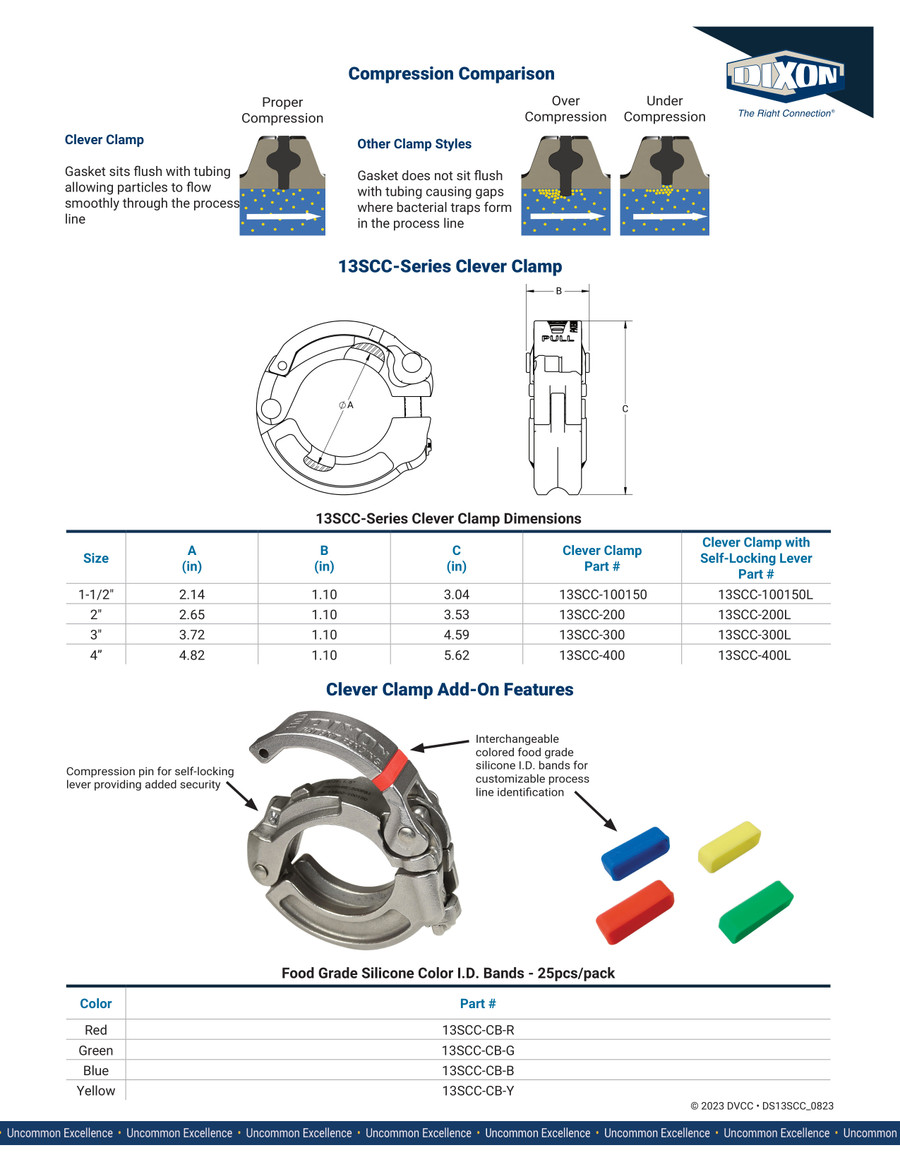

The patent pending Dixon 13SCC-Series Clever Clamp offers a new perspective on an age-old design. With its easy-to-use lever closure, it provides fast and consistent compression on both rubber and PTFE gasket connections every time. No torquing, no tools; just clamp and go!
Application
• Can be installed anywhere a traditional tri-clamp is used
Sizes
• 1-1/2”, 2”, 3”, and 4”
Features
• Consistent compression of the gasket with every use:
- No concern for damage to gasket from over-compression or creating internal bacteria traps from over or under compression
- ASME BPE capable
• Adjustable for both rubber and PTFE gasket styles
• Fast installation, no torquing tools required
• Threadless design, eliminates risk of damaged threads leading to improper tightening of wingnut
• Lockout ready design - aligned holes in clamp body make cable locking fast and easy
• Self-locking lever (L) and color-coding options available
|
13SCC-100150
|
1-1/2"
|
304 Stainless Steel
|
|
13SCC-200
|
2"
|
304 Stainless Steel
|
|
13SCC-300
|
3"
|
304 Stainless Steel
|
|
13SCC-400
|
4"
|
304 Stainless Steel
|
|
13SCC-100150L (self locking pin)
|
1-1/2"
|
304 Stainless Steel
|
|
13SCC-200L (self locking pin)
|
2"
|
304 Stainless Steel
|
|
13SCC-300L (self locking pin)
|
3"
|
304 Stainless Steel
|
|
13SCC-400L (self locking pin)
|
4"
|
304 Stainless Steel
|
Don't see the item you need? Fill out a contact us form with your request.
