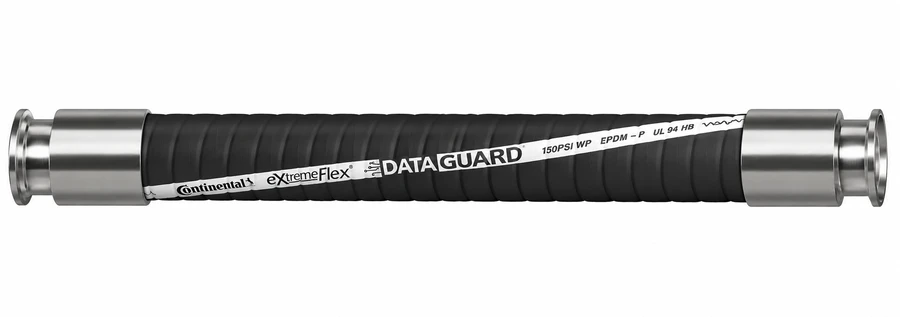

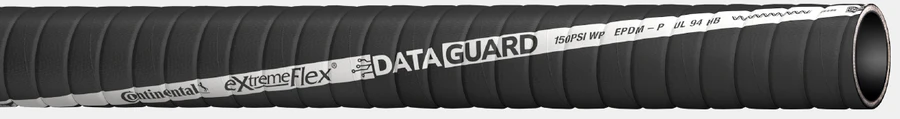

ExtremeFlex Dataguard is an ultra-flexible and lightweight data cooling feed hose. Engineered to deliver a constant supply of coolant throughout your data center. Its advanced design allows for an impressive 1:1 bend radius, ensuring easy routing and installation within rack systems.
- Tube: Black EPDM (Peroxide-cured)
- Cover: Corrugated Black EPDM (Abrasion Resistant & UL94 HB Flame Resistant)
- Reinforcement: Spiral Plied Fabrics with double helix wire
- Fittings: Westco Sanitary 304ss tri-clamp flange ends
- Temperature Range: -40°C to 93°C (-40°F to 200°F)
- Design Safety Factory: 4:1
- Max Pressure Rating: 150psi
| SAP # | ID(in) | ID (mm) | OD (in) | OD (mm) | Working Pressure (PSI) | Working Pressure (MPa) | Bend Radius (in) | Vacuum (Hg) | Weight (lbs/ft) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|
| 21203745 | 3/4" | 19.1 | 1.15 | 29.1 | 150 | 1.03 | 0.75 | 29 | 0.34 | 0.501 |
| 21203748 | 1" | 25.4 | 1.39 | 35.4 | 150 | 1.03 | 1.00 | 29 | 0.42 | 0.630 |
| 21203750 | 1-1/4" | 31.8 | 1.65 | 41.9 | 150 | 1.03 | 1.25 | 29 | 0.53 | 0.793 |
| 21203752 | 1-1/2" | 38.1 | 1.90 | 48.2 | 150 | 1.03 | 1.50 | 29 | 0.62 | 0.923 |
| 21203754 | 2" | 50.8 | 2.44 | 61.9 | 150 | 1.03 | 2.00 | 29 | 0.85 | 1.266 |
| 21203756 | 2-1/2" | 63.5 | 3.00 | 76.3 | 150 | 1.03 | 2.50 | 29 | 1.25 | 1.859 |
| 21203758 | 3" | 76.2 | 3.50 | 89.0 | 150 | 1.03 | 3.00 | 29 | 1.49 | 2.213 |
| 21203760 | 4" | 101.6 | 4.53 | 115.1 | 150 | 1.03 | 4.00 | 29 | 2.11 | 3.142 |
