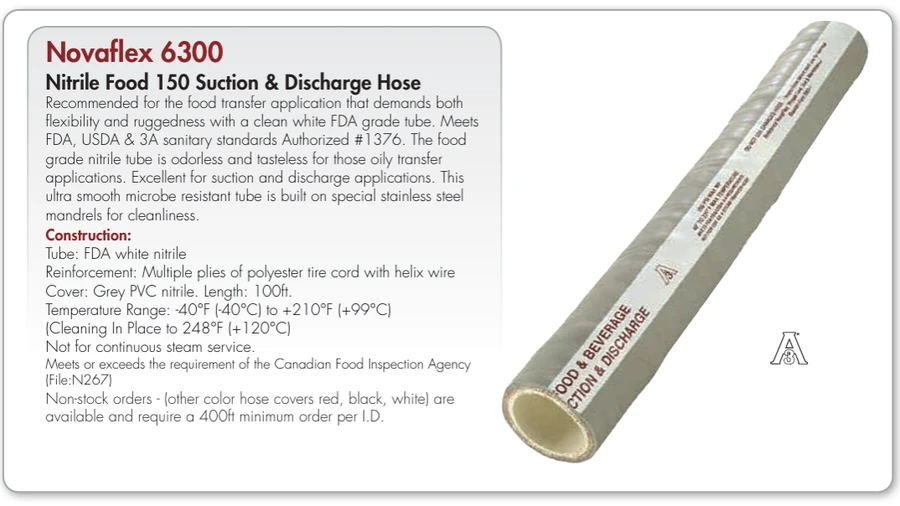

Recommended for the food transfer application that demands both flexibility and ruggedness with a clean white FDA grade tube. Meets FDA, USDA & 3A sanitary standards Authorized #1376. The food grade nitrile tube is odorless and tasteless for those oily transfer applications. Excellent for suction and discharge applications. This ultra smooth microbe resistant tube is built on special stainless steel mandrels for cleanliness.
Specifications:
- Tube: FDA white nitrile
- Reinforcement: Multiple plies of polyester tire cord with helix wire
- Cover: Grey PVC nitrile
- Fittings: Westco Sanitary 316L Tri-Clamp Ends (1.5")
- Temperature Range: -40°F to +210°F (-40°C to +99°C) Cleaning In-Place Temperature: 248°F (+120°C)
- Not for continuous steam service
- Meets FDA, USDA & 3A sanitary standards (Authorized #1376.)
- Meets or exceeds the requirement of the Canadian Food Inspection Agency (File: N267)
| Part No. | I.D. | O.D. | Plies | WP PSI | MBR | WT LBS/FT |
|---|---|---|---|---|---|---|
| 6300WT-00750-00 | ¾" | 1.25 | 2 | 150 | 4 | 0.40 |
| 6300WT-01000-00 | 1" | 1.50 | 2 | 150 | 5 | 0.50 |
| 6300WT-01500-00 | 1½" | 2.00 | 2 | 150 | 6 | 0.71 |
| 6300WT-02000-00 | 2" | 2.50 | 2 | 150 | 7 | 0.95 |
| 6300WT-03000-00 | 3" | 3.52 | 2 | 150 | 9 | 1.51 |
| 6300WT-04000-00 | 4" | 4.52 | 2 | 150 | 12 | 1.98 |
