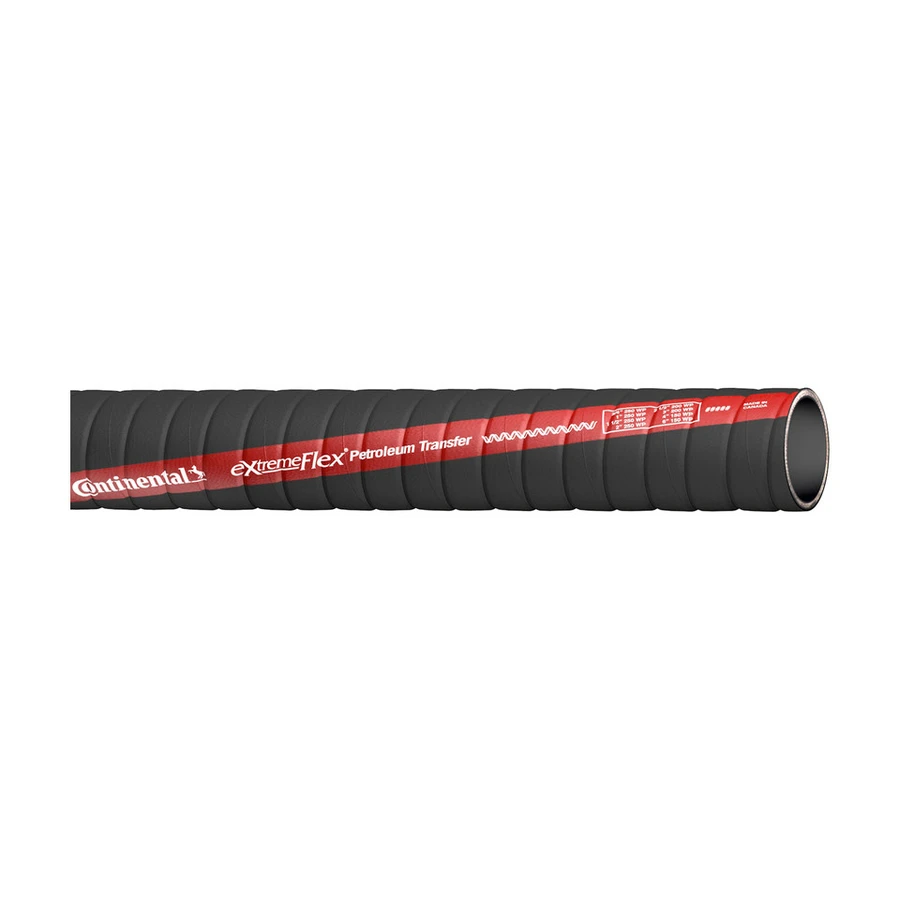

This hose is an extremely flexible and lightweight drop hose for use in tank truck and in-plant operation to transfer diesel, ethanol, gasoline, oil and petroleum-based products with up to 50% aromatic content . It has a corrugated construction for lower drag coefficient and superior abrasion resistance.
- Tube: Nitrile Synthetic Rubber (ARPM Class A (High Oil Resistance)
- Cover: Chemivic Synthetic Rubber (Corrugated)
- Reinforcement: Spiral-Plied Synthetic Fabric with wire helix
- Temperature Range: -40°F to 200°F (-40°C to 93°C)
- Fittings: 304ss Male NPT both ends, brand may vary depending on availability
| Part Number | Inner Ø (in) | Outer Ø (in) | Weight (lbs/ft) | WP (PSI) | Bend Radius (in.) | Vacuum HG (in.) |
|---|---|---|---|---|---|---|
| 21130961 | 1/2 | 0.933 | 0.32 | 250 | 0.50 | 29 |
| 20459042 | 3/4 | 1.183 | 0.42 | 250 | 0.75 | 29 |
| 20459043 | 1 | 1.433 | 0.53 | 250 | 1.00 | 29 |
| 20592031 | 1-1/4 | 1.68 | 0.65 | 250 | 1.25 | 29 |
| 20459044 | 1-1/2 | 1.91 | 0.73 | 250 | 1.50 | 29 |
| 20459045 | 2 | 2.43 | 0.96 | 250 | 2.00 | 29 |
| 20459046 | 2-1/2 | 3.00 | 1.41 | 200 | 2.50 | 29 |
| 20459047 | 3 | 3.50 | 1.69 | 200 | 3.00 | 29 |
| 20459048 | 4 | 4.56 | 2.42 | 150 | 4.00 | 29 |
| 20546328 | 6 | 6.62 | 4.43 | 150 | 6.00 | 29 |
